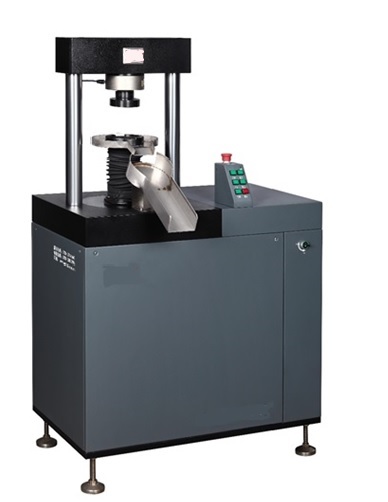

EM Compression Testing Machine TF-ETM305F
TruForce Electromechanical Compression Testing Machine is ideal solution to determine the compression strength of various building materials
• Versatile, easy-to-use TruTest software with a large and growing library of standards-compliant test methods (ASTM, ISO, DIN, EN, BS, and more)
• Modular design permits easy upgrading
• Plenty of test standards are built in the library of the software for routine tests. User configured report: user can preset report template and include necessary information, like company information, statistics, and etc. Test report can export to Excel or Word.
• Powerful graphic function: real time display curves, like displacement-load, stress-strain, displacement-time, load-times, and others
• Powerful analysis function can calculate typical value and display on the curve, like Fm, ReL, ReH, Rp.
• Measurement unit: Users can select SI, or others, like N, kN, kgf, lbf, MPa, and so on, user can define the unit by themselves using formula.
features
- • Compression Capacity: 300kN
- • Accuracy class: Class 1
- • Force range 0.4~100% of full range (1.2N ~ 300kN)
- • Columns: 2 columns
- • Distance between columns: 390mm
- • Force resolution: 1/500000FS
- • Force accuracy: ±0.5% of reading
- • Loading speed: 2.4k±200 (N/s)
- • Distance between platens: 220mm
