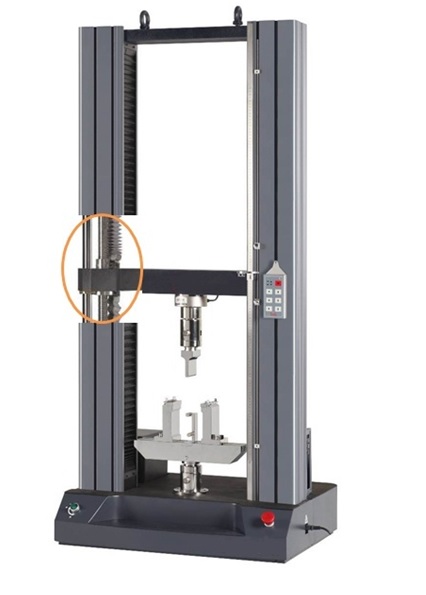

TruForce Universal Testing Machine Model TF-ETM-C
TruForce TF-ETM-C Series addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The dual column testing systems are suited for tension and/or compression applications with load range requirements from 20kN to 50kN. They are typically used for quality control.
• Robust guidance columns increase lateral stiffness and ensure linear crosshead travel.
• Non-clutched drives, rated for full speed at maximum force
• Compact design saves lab space
• Pre-loaded ball screws and heavy duty bearings assure long life with zero backlash as well as linear low force and through zero performance
• Fully-protected lead screw covers provide longer life and greater operator protection
• Easy-to-clean aluminum column covers with chamfered corners to facilitate access to the test area
• T-slots are built in for simple, convenient attachment and positioning of testing accessories
• High-speed, low vibration, world-class, maintenance-free, Japanese made AC servo motor and servo controller
• Built-in bidirectional load cell is assembled in the middle crosshead to prevent any collisions and simple to perform compression or tension tests
• Dual action over-travel limits on all frames provide the highest level of safety and meet all international standards
• Remote control keypad facilitates test operation
features
- Extensive range of accessories to meet test requirements in almost any application or industry: plastics, metals, biomedical, composites, elastomers, components, automotive, aerospace, textiles, and more.
- • Tension grip
- • Peel/tear fixture
- • Compression fixture
- • Flexure fixture
- • Film COF test fixture
- • Exchangeable load cells: 10N~2kN
- • Long travel extensometer
- • Clip-on extensometer
