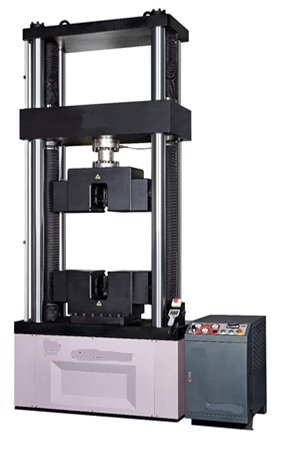

Universal Testing Machine TF-ETM106D-1000kN
TruForce TF-ETM106D Series addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The dual column testing systems with rugged structure are suited for tension and/or compression applications with load range requirements up to 1000kN. They are typically used for quality control and production testing.
• Heavy duty load frame 200/300kN is available with single and dual test space.
• Standard equipped with wedge action tensile grip, and optional hydraulic tensile grip is available.
• Heavy duty load frame 500/600kN is dual test space equipped with hydraulic tensile grip for large and high strength specimen.
• Heavy duty load frame 1000kN with SINGLE test space equipped with hydraulic tensile grip for large and high strength specimen.
• Various frames to satisfy your test needs from low force to high force.
• Full complement of test accessories.
• Extensive range of accessories to meet test requirements in almost any application or industry.
features
- • Capacity (kN): 1000kN
- • Force range: 0.4 ~ 100%FS
- • Force accuracy ±0.5% of reading
- • Force resolution: 1/500000FS
- • Position accuracy: ±0.50% of reading
- • Position resolution (μm): 0.05
- • Crosshead speed (mm/min) 0.001—200mm/min
- • Crosshead speed accuracy: within ±0.5% of set speed
- • Crosshead travel (mm): 1000
- • Test width (mm): 900
- • Dimension (mm): 1500×800×3540
- • Power requirements: 3-phase, 415V±10%, 50/60Hz
- • Power consumption: 12kW
- • Weight (kg): 8000
