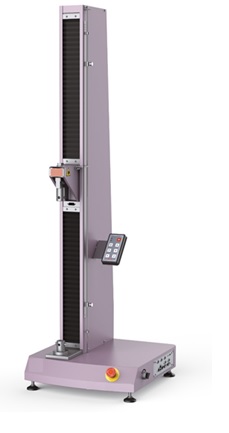

TruForce Universal Testing Machine Model TF-ETM-A
TruForce TF-ETM -A Series addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The single column testing systems are suited for tension and/or compression applications where tests are less than 5 kN and lab space is limited. They are typically used for quality control and production testing.
• Robust linear motion guide increases lateral stiffness and ensure linear crosshead travel.
• Imported servo motor with precise planet-gear speed reducer provides higher driving efficiency, low noise and free of maintenance.
• Compact design saves lab space
• Pre-loaded ball screws and heavy duty bearings assure long life with zero backlash as well as linear low force and through zero performance.
• Fully-protected lead screw covers provide longer life and greater operator protection
• High-speed, low vibration, world-class, maintenance-free, AC servo motor and servo controller
• Photoelectrical encoder built in servo motor system is for position measurement of crosshead
• Built-in bidirectional load cell is assembled in the middle crosshead to prevent any collisions and simple to perform compression or tension tests
• Dual action over-travel limits on all frames provide the highest level of safety and meet all international standards
• Remote control keypad facilitates test operation
• Full one-year warranty on parts
features
Extensive range of accessories to meet test requirements in almost any application or industry: plastics, metals, biomedical, composites, elastomers, components, automotive, aerospace, textiles, and more.
- • Tension grip
- • Peel/tear fixture
- • Compression fixture
- • Flexure fixture
- • Film COF test fixture
- • Exchangeable load cells: 10N~2kN
- • Long travel extensometer
- • Clip-on extensometer
