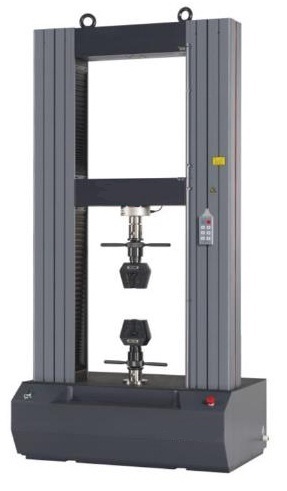

Universal Testing Machine Model TF-ETM-D
TruForce TF-ETM-D Series addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The dual column testing systems with rugged structure are suited for tension and/or compression applications with load range requirements from 50kN to 600kN. They are typically used for quality control and production testing.
• Pre-loaded ball screws and heavy duty bearings assure long life with zero backlash as well as linear low force and through zero performance
• Fully-protected lead screw covers provide longer life and greater operator protection
• Easy-to-clean aluminum column covers with chamfered corners to facilitate access to the test area
• T-slots are built in for simple, convenient attachment and positioning of testing accessories
• High-speed, low vibration, world-class, maintenance-free, Japanese made AC servo motor and servo controller
• Photoelectrical encoder built in servo motor system is for position measurement of crosshead
• Built-in bidirectional load cell is assembled in the middle crosshead to prevent any collisions and simple to perform compression or tension tests
• Dual action over-travel limits on all frames provide the highest level of safety and meet all international standards
• Remote control keypad facilitates test operation
• DTC-500 controller provides high speed data acquisition with 8-CH A/D converting
• Full one-year warranty on parts and labor
features
- • Robust guidance columns increase lateral stiffness and ensure linear crosshead travel
- • Non-clutched drives, rated for full speed at maximum force
- • Compact design saves lab space
- • Wider test width
