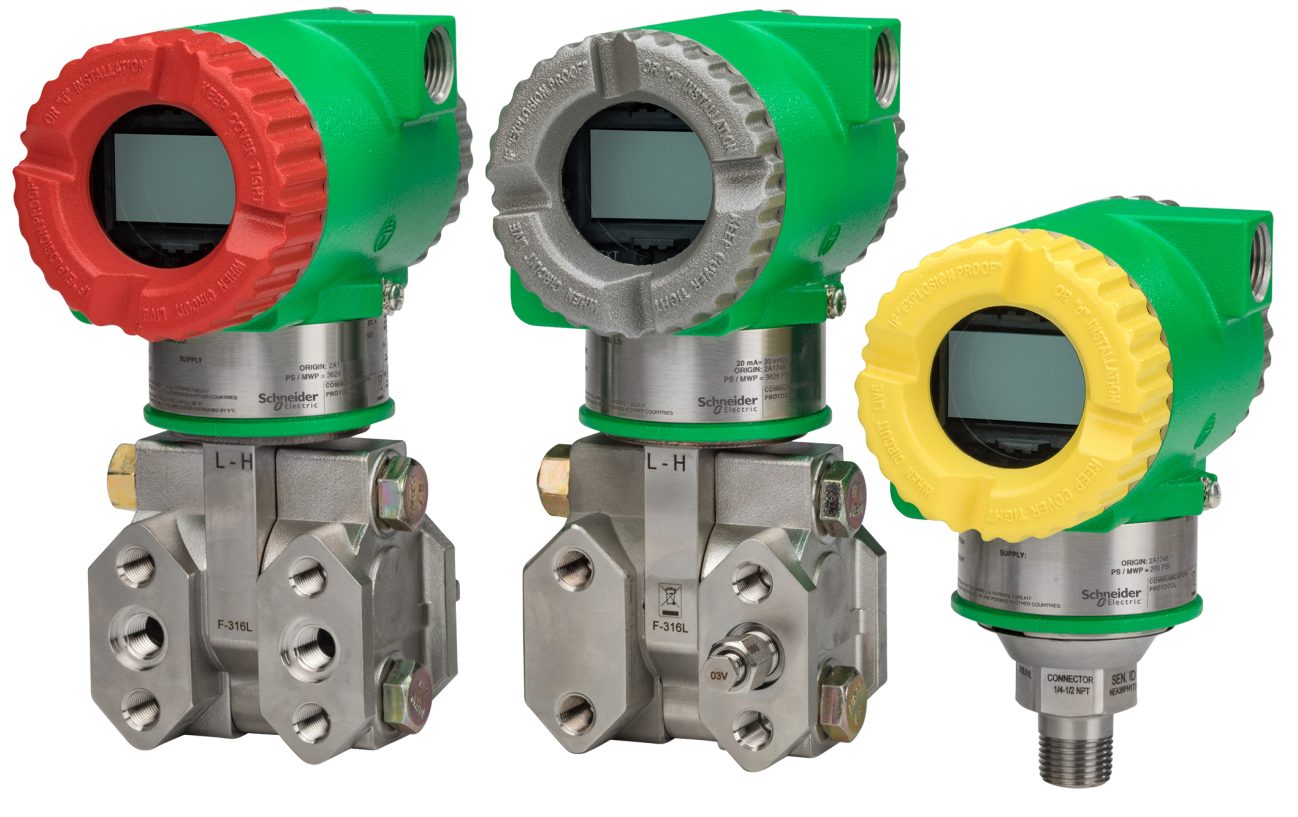

IAP50S, IGP50S, and IDP50S Transmitters
The next generation family of pressure transmitters are intelligent, open-loop, two-wire measuring devices that convert process pressure to a proportional analog and/or digital signal. The versatility of the Value, Advanced, and Performance transmitter families allow you to select the transmitter best suited for your application in terms of features, performance, and price.
• This new pressure transmitter family has been designed to make your process more profitable by providing you the opportunity to select your transmitter at the best ratio of performance/ price for your application, with the added value to reduce your inventory as opposed to a competitive offering.
• Premium Performance Transmitters with FoxCal™ technology are ideal for challenges such as differential head measurement for wide-ranging flows, or demanding applications requiring a high level of accuracy and a high stability. Accuracy leads the industry at ±0.025% of reading and stability better than ±0.015% URL per year for ten years.
• With Patented FoxCal technology and TÜV SIL2/SIL3 safety coupled with high accuracy and reliability, the Schneider Electric multitiered pressure transmitter family is the perfect solution to optimize your investments and realize additional savings.
features
- • The Premium Performance pressure transmitters offer the following features:
- • Absolute, Gauge, and Differential Pressure transmitters
- • HART digital outputs, FOUNDATION Fieldbus digital outputs, 4 to 20 mA outputs
- • TÜV SIL 2 certification for HART transmitters
- • 5-year proof test interval for pressure transmitters installed in SIL 2 Safety loops
- • Accuracy up to ±0.025% of reading
- • Response time of 100 ms for AP/GP transmitters and 125 ms for DP transmitters
- • Innovative technology allows the transmitter to store multiple factory-preset calibration ranges, while maintaining published accuracy without the need for field calibration
- • Time in Service meter features cumulative power-up time and time powered since last user reset for HART and FOUNDATION Fieldbus transmitters
- • High Turndown Capabilities (up to 400:1)
- • Ability to locally configure the device with pushbuttons on the optional local display
- • Ability to remotely communicate with and configure the device using the device descriptor (DD), Device Type Manager (DTM), or the Field Device Integration (FDI) package
- • Optional External Zero Adjustment
- • Field-proven piezoresistive silicon microsensors help ensure excellent measurement performance
- • Simple, elegant sensor design with very few parts achieves exceptional reliability
- • Differential pressure (DP) transmitters are available with traditional and low profile or Coplanar™ structures
- • Depending on transmitter structure, sensor diaphragm materials include 316L ss, nickel alloy, Co-Ni-Cr, Monel™, or Tantalum™
- • ½ NPT male, ½ NPT female, or M20 male process connections
- • Numerous mounting bracket set options
- • Process venting and bleeding options
- • Special degreasing and cleaning options
- • Low temperature options
- • Custody transfer lock and seal options
- • Many configurations of direct connect or capillary connected seals
