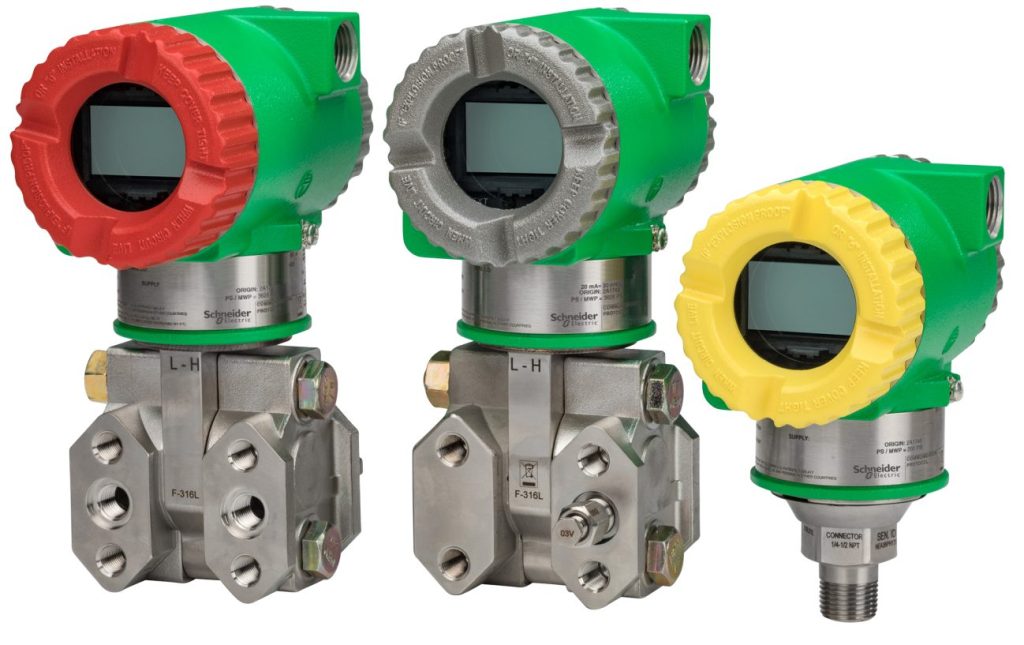

IAP10S, IGP10S, and IDP10S Transmitters
The next generation family of pressure transmitters are intelligent, open-loop, two-wire measuring devices that convert process pressure to a proportional analog and/or digital signal. The versatility of the Value, Advanced, and Performance transmitter families allow you to select the transmitter best suited for your application in terms of features, performance, and price.
• This new pressure transmitter family has been designed to make your process more profitable by providing you the opportunity to select your transmitter at the best ratio of performance/ price for your application, with the added value to reduce your inventory as opposed to a competitive offering.
• Advanced Performance Transmitters, with an accuracy of ±0.05% of reading from 100% up to 4% of URL and integrated FoxCal technology, make the selection of sensor range very easy. This wide accuracy helps to standardize one pressure transmitter, eliminating erroneous sensor selection, reducing inventory, and allowing fast replacement with less downtime.
• With Patented technology and TÜV SIL2/SIL3 safety coupled with high accuracy and reliability, the Schneider Electric multitiered pressure transmitter family is the perfect solution to optimize your investments and realize additional savings.
features
- The Advanced Performance pressure transmitters offer the following features:
- • Absolute, Gauge, and Differential Pressure transmitters
- • HART, Modbus, or FOUNDATION Fieldbus digital outputs, or 4 to 20 mA outputs (HART only)
- • Accuracy up to ±0.05% of reading
- • Response time of 100 ms for AP/GP transmitters and 125 ms for DP transmitters4
- • Innovative technology allows the transmitter to store multiple factory-preset calibration ranges, while maintaining published accuracy without the need for field calibration
- • Time in Service meter features cumulative power-up time and time powered since last user reset for HART, Modbus, and FOUNDATION Fieldbus transmitters
- • High Turndown Capabilities (up to 400:1)
- • Ability to locally configure the device with pushbuttons on the optional local display
- • Ability to remotely communicate with and configure the device using the device descriptor (DD), Device Type Manager (DTM), or the Field Device Integration (FDI) package.
- • Simple, elegant sensor design with very few parts achieves exceptional reliability
- • Differential pressure (DP) transmitters are available with traditional and low profile or Coplanar™ structures
- • Depending on transmitter structure, sensor diaphragm materials include 316L ss, nickel alloy6, Co-Ni-Cr, Monel™, or Tantalum™
