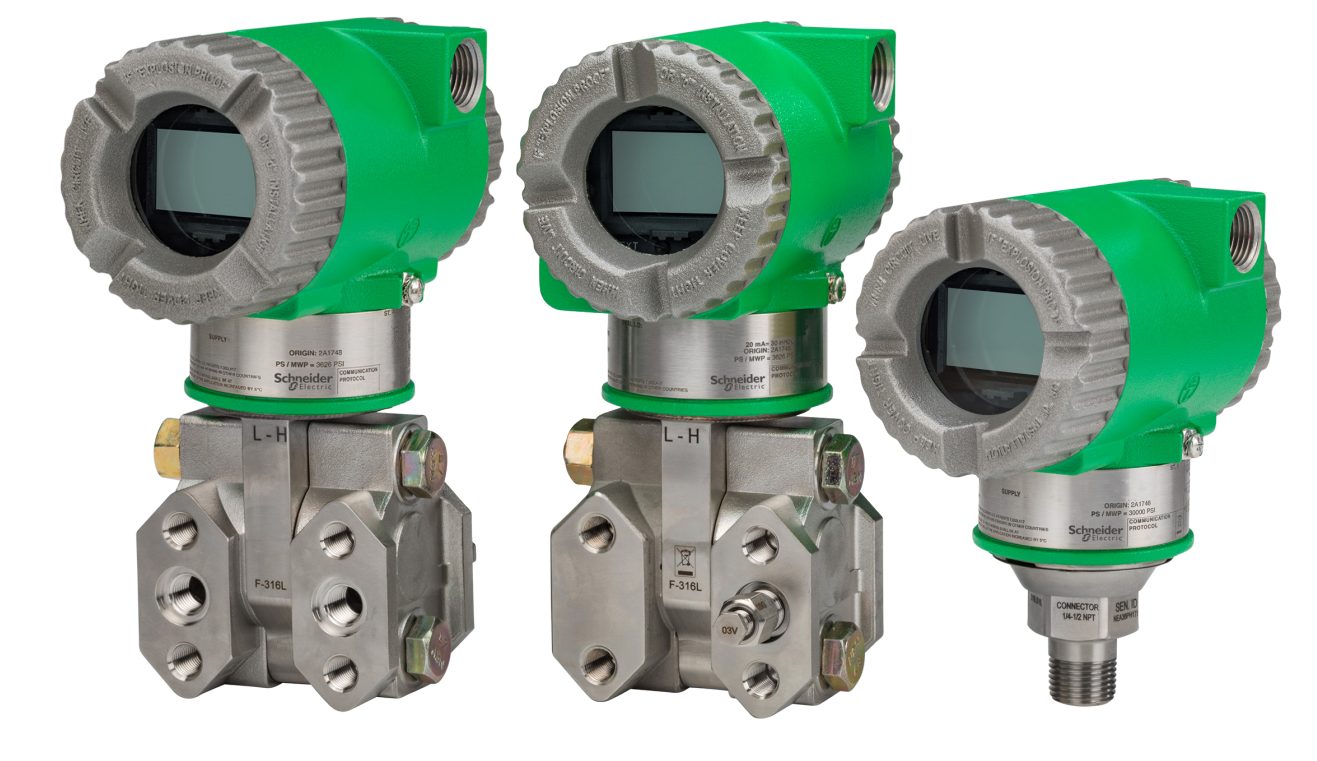

IAP05S, IGP05S, and IDP05S Transmitters
The next generation family of pressure transmitters are intelligent, open-loop, two-wire measuring devices that convert process pressure to a proportional analog and/or digital signal. The versatility of the Value, Advanced, and Performance transmitter families allow you to select the transmitter best suited for your application in terms of features, performance, and price.
• This new pressure transmitter family has been designed to make your process more profitable by providing you the opportunity to select your transmitter at the best ratio of performance/ price for your application, with the added value to reduce your inventory as opposed to a competitive offering.
• Value Performance Transmitters, with an accuracy of ±0.075% of span, offer robustness, experience, and safety to guarantee precise and reliable measurements, even at high pressures. These pressure transmitters, in their low power version drawing no more 3 mA, can be installed in remote locations, with a limited power budget coming from solar panels or battery sources.
• With Patented technology and TÜV SIL2/SIL3 safety coupled with high accuracy and reliability, the Schneider Electric multitiered pressure transmitter family is the perfect solution to optimize your investments and realize additional savings.
features
- The Value Performance pressure transmitters offer the following features:
- • Absolute, Gauge, and Differential Pressure transmitters
- • HART digital outputs, 4 to 20 mA outputs, low power analog outputs
- • Accuracy up to ±0.075% of span
- • Response time of 100 ms for AP/GP transmitters and 125 ms for DP transmitters
- • Time in Service meter features cumulative power-up time and time powered since last user reset for HART transmitters
- • High Turndown Capabilities (up to 400:1)
- • Ability to locally configure the device with pushbuttons on the local display (optional with HART transmitters)
- • Ability to remotely communicate with and configure the device using the device descriptor (DD), Device Type Manager (DTM), or the Field Device Integration (FDI) package
- • Field-proven piezoresistive silicon microsensors help ensure excellent measurement performance
- • Simple, elegant sensor design with very few parts achieves exceptional reliability
- • Differential pressure (DP) transmitters are available with traditional and low profile or Coplanar™ structures
- • Sensor diaphragm materials include 316L ss or nickel alloy3
- • ½ NPT male, ½ NPT female, or M20 male process connections
- • Standard 2-year warranty (optional 5-year warranty)
