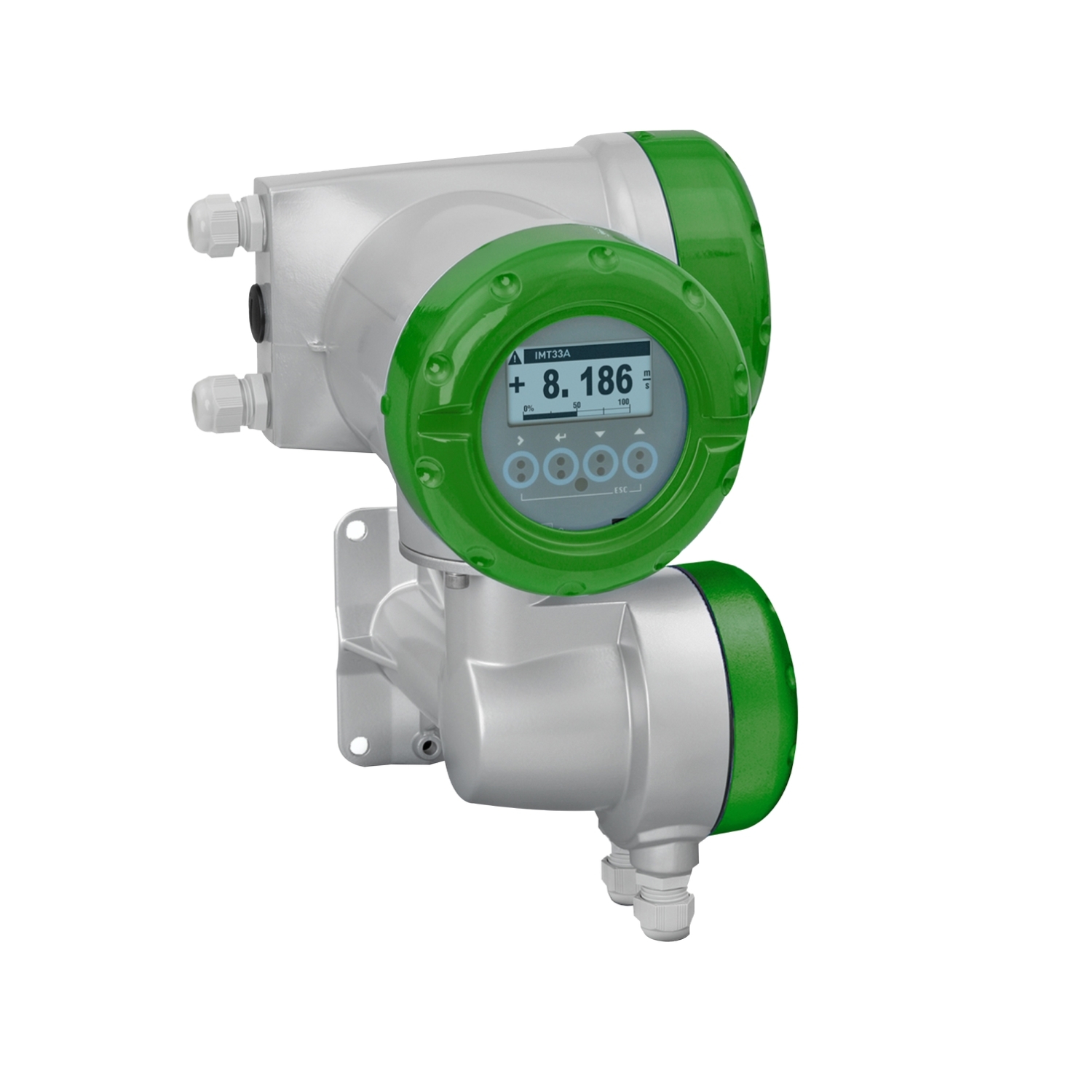

IMT33A Magnetic Flow Transmitter
The IMT33A is a very complete transmitter, featuring a wide range of variants and options to match almost any application requirements in process industries. The IMT33A magnetic flow transmitter can be used with 8400A, 8500A, 9500A, 9600A and 9700A magnetic flow tubes.
The versatile solution:
• The IMT33A is a very complete transmitter, featuring a wide range of variants and options to match almost any application requirements in process industries.
• The robust and reliable transmitter is compatible with the 8400A, 8500A, 9500A, 9600A and 9700A flow tubes. Its measurement performance is excellent even in more difficult applications like mediums with low conductivity or mediums with high solid content or entrained air, corrosive and or abrasive mediums.
• The design concept offers an uniform user interface and menu structure and also an uniform electronics suitable for various housings, uniform device and process diagnostics functions and uniform communication interfaces. This offers great time and cost benefits with regard to procurement, engineering, operation and servicing.
• The IMT33A transmitter provides a largest variety of flowmeter and process diagnostic functions guaranteeing reliable measurements. Detection of deposits or coating on the electrodes, temperature and conductivity changes in the medium, gas bubbles or solids, and an empty pipe are good examples of process diagnostics functions. The flow velocity and volume can be read from the display or in analogue form via the current output (4…20 mA) as well as by frequency or pulse outputs. Measuring values and diagnostic information can be transmitted via field bus interfaces including HART®, RS485 Modbus, FOUNDATION™ Fieldbus and PROFIBUS®.
• Large graphic display with backlit with graphics
• Configuration Infrared interface for reading and writing all parameters (option)
• Optical buttons (4) for operator control without opening the housing
• Intuitive navigation and quick setup menu in 18 operating languages
• Any combination of up to 4 outputs and inputs
• Communication interfaces including HART®, Modbus, FOUNDATION™ Fieldbus and PROFIBUS®
features
- • For operation with complete 8400A, 8500A, 9500A, 9600A and 9700A flow tubes
- • For flow tubes over a diameter range of DN2.5…2000 / 1/10…80″
- • Continuous measurement of volume flow and flow velocity Integrated conductivity measurement, mass flow (at constant density) and coil temperature
- • High measuring accuracy and long-term stability: ±0.15% of measured value ± 1 mm/s
- • Optimal zero point stability independent from product properties
- • Power supply via 100…230 VAC (standard) or 24 VDC or 24 VAC/DC (optional)
- • Superior process reliability thanks to standard integrated diagnostics: testing of device functions, check for compliance with specifications and application testing
- • Available inputs and outputs: Current output (including HART®), pulse/frequency output, status output, control input and current input
- • Communication interfaces for integration into third party systems via HART® (as standard), Modbus, FOUNDATION™ Fieldbus and PROFIBUS®
