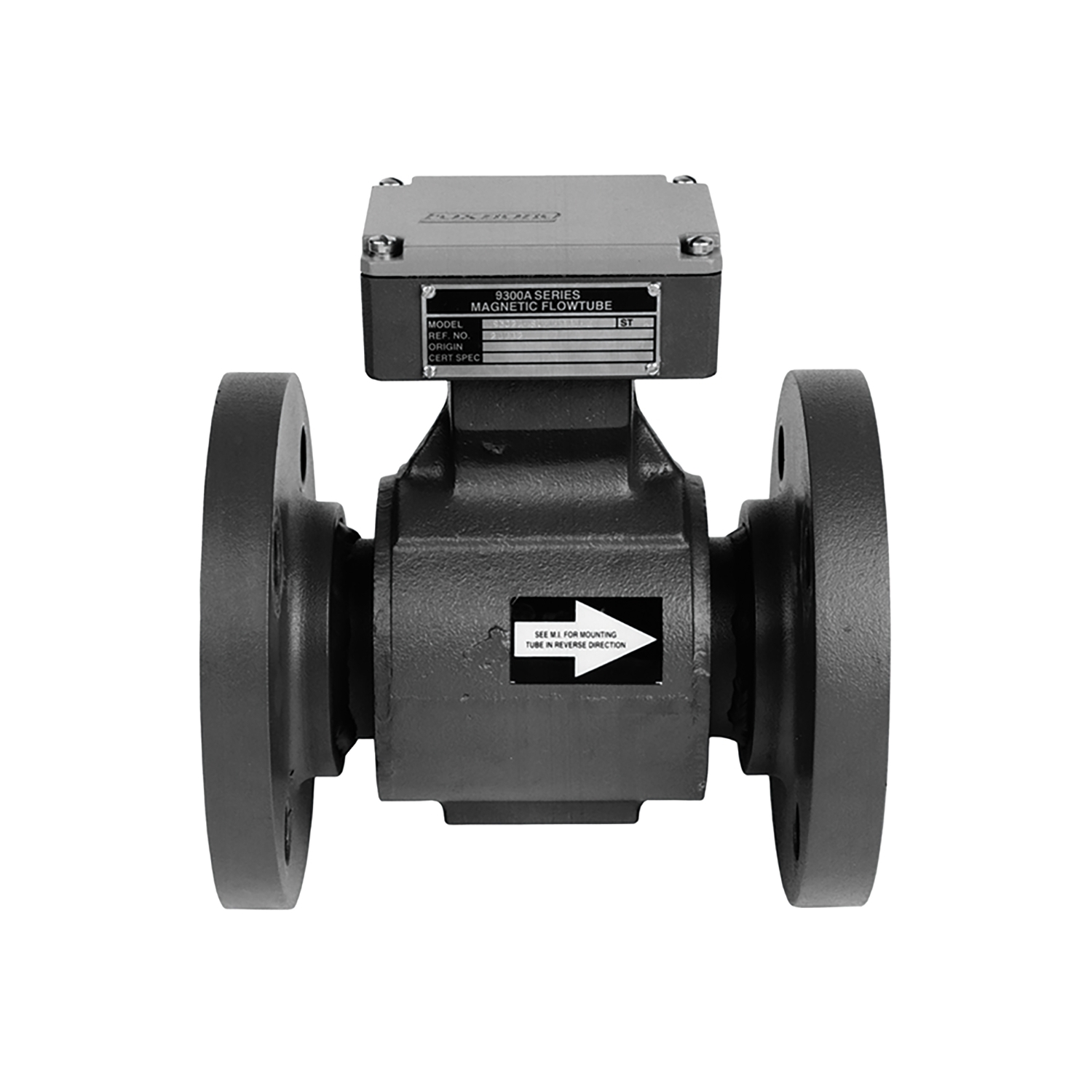

9300A Series Flanged Magnetic Flowtubes
These PFA, PTFE, and polyurethane-lined compact, flanged magnetic flowtubes, together with an IMT25 Magnetic Flow Transmitter combine to form an easy-to-use versatile, dc pulsed Magnetic Flowmeter. The flowmeter measures electrically conductive liquids and produces a measurement signal directly proportional to volumetric flow rate.
RUGGED INTEGRAL DESIGN
• The welded housing design of the 9300A flowtubes provides a very rugged and environmentally superior flowtube assembly that can be installed in harsh inplant or outdoor environments. The flowtube enclosure is weatherproof, as defined by IEC IP66, and provides watertight and corrosion-resistant protection of NEMA 4X for all tubes except 15 to 150 mm (1/2 to 6 in) sizes PTFE lined, which are NEMA 4. The flowtube is also capable of total submergence when used with a remote mounted transmitter.
• The permanently attached and retained PFA lined flowtube is sufficiently stable to withstand applications involving high temperatures, severe temperature cycling, strong pipeline vibration, and severe pressure cycling, including full vacuum.
• The PTFE lined flowtube is more cost effective than PFA and can withstand severe corrosion and/or mild abrasion.
• The polyurethane lined flowtube is also more cost effective than PFA in larger size meters, and can withstand mild corrosion and/or severe abrasion.
COMPACT FLOWTUBE
• The 9300A has a compact design that provides face-to-face overall lengths in each size that conform to recommended flowtube dimensions contained in ISO/DIS 13359.
PULSED DC FLOWTUBES USED WITH REMOTE OR INTEGRALLY MOUNTED TRANSMITTERS
• The 9300A Series Magnetic Flowtubes are calibrated for use with pulsed dc coil excitation. The intelligent I/A Series IMT25 Magnetic Flow Transmitter is offered for use with these flowtubes. The IMT25 may be integrally mounted to the flowtube itself, or remote mounted (on a pipe or flat surface) for distances up to 300 m (1000 ft).
CONICAL ELECTRODES
• Conical electrodes are offered in both 316 ss and Hastelloy C with PFA- and PTFE-lined flowtubes sizes 25 to 150 mm (1 to 6 in). These are excellent selections for applications which coat conventional flush-with-lining electrodes. Conical electrodes extend into the process where the natural sweeping action of the fluid across the electrode face produces a self-cleaning action.
features
- • Rugged integral design ideal for installation in harsh in-plant or outdoor environments.
- • Compact design with face-to-face overall lengths that meet ISO/DIS 13359.
- • Metric PN10 to PN40, or ANSI Class 150 and 300 flanges in carbon or stainless steel.
- • Transmitter can be mounted in a remote location, or integrally mounted to the flowtube.
- • NEMA 4 enclosure for PTFE-lined 15 to 150 mm (1/2 to 6 in) sizes; and NEMA 4X enclosure for all other flowtube linings and sizes.
- • Total/Accidental submergence housing construction offered with all Flowtubes.
- • Standard 2-Year Warranty.
