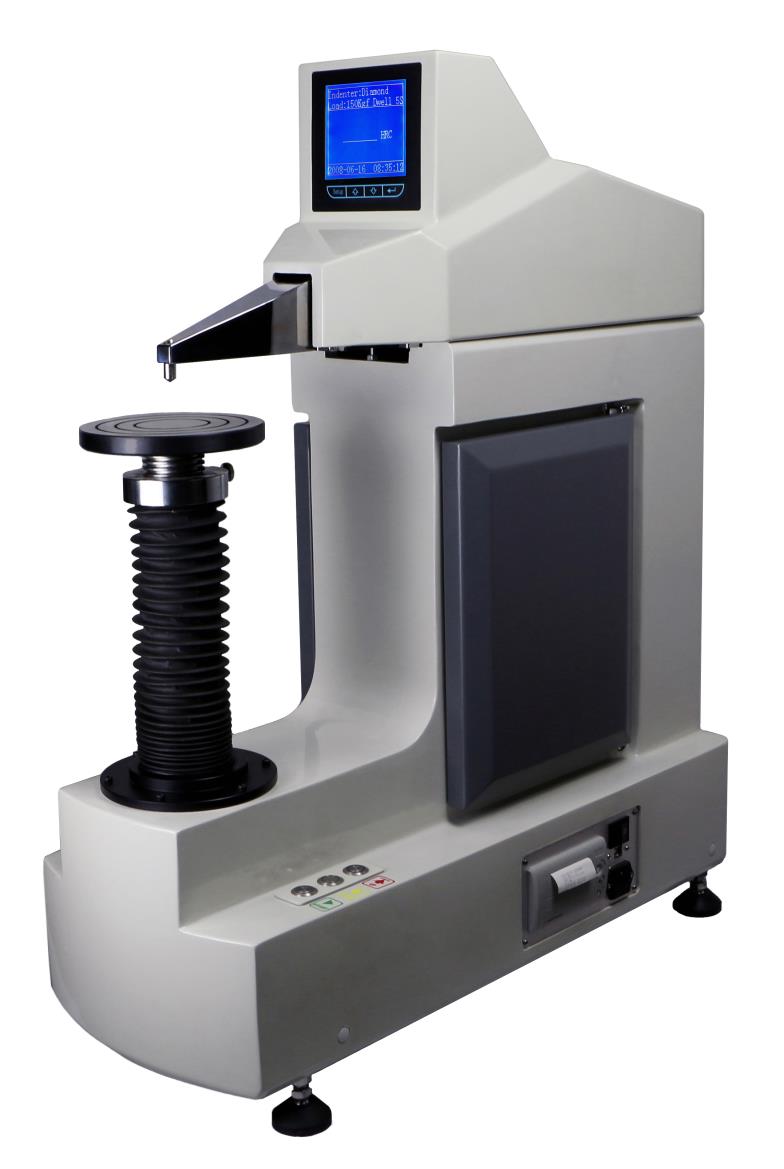

TruForce Combined Auto Rockwell Hardness Tester
TruForce range of Rockwell Hardness Tester has gained widespread popularity across various industries and applications. These testers are known for their user-friendly interface, high accuracy, and competitive pricing. They offer a diverse selection of types and models, including analog and touch screen Rockwell, Superficial Rockwell, as well as Combined Rockwell Testers, etc.
• Combined tester–Regular Rockwell & Rockwell Superficial hardness for metal and plastic material.
• Horizontal dolphin nose Indenter is suitable also for internal and external testing.
• Testing on Surfaces difficult to reach. Testing internal surface of rings and tubes.
• Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales.
• The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal.
• Automatic testing cycle: Lifting of part, pre-loading, loading, dwell, unloading, results will be finished automatically.
• Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB port.
• Test HR value can be converted to the value of HB, HV, HK and σb value.
features
- • The test force is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit replace traditional dead weights. The result is highly accurate measurements at all test loads up to 0.5%.
- • Simple plug – and – play tech allows for much more quick and easy installation than traditional weights type machine.
- • Automatic One key starting. Automatic main-load and testing cycle.
- • Extended dolphin nose allows vertical test height of 300mm and throat depth of 220mm.
- • Integrated casting body with wider basement leads to permanent stability.
- • RS232 and USB port to PC.
