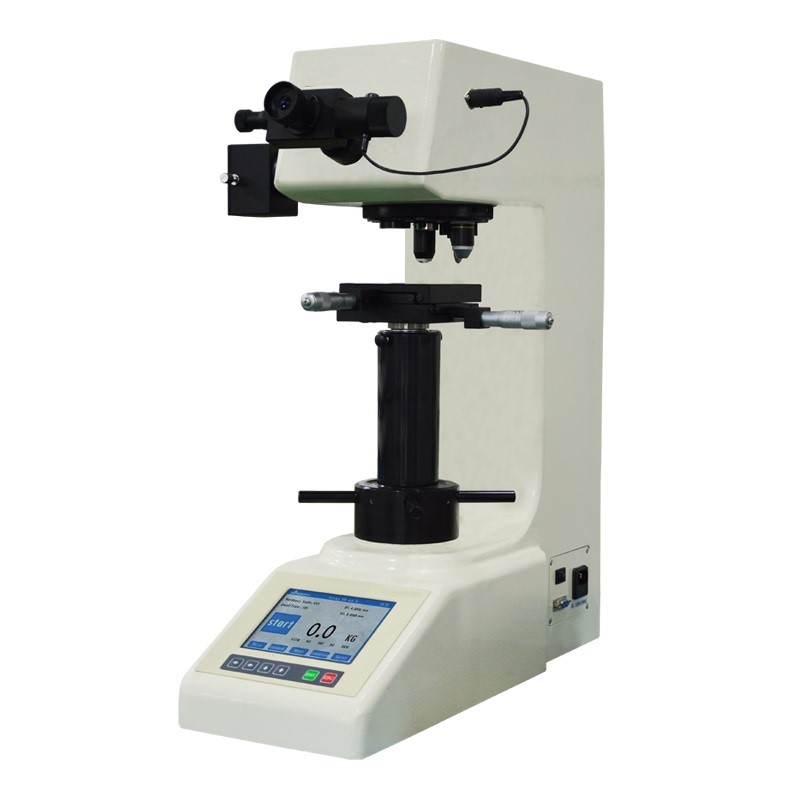

TruForce Digital Vickers Hardness Tester TF-TV Series
The Vickers method utilizes an optical measurement system and involves applying a range of light loads using a diamond indenter to create an indentation. This indentation is then measured and converted into a hardness value. The Vickers method is highly versatile and finds great utility in testing a wide range of materials.
• Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, meets different kinds of materials measuring requirement.
• Close loop loading system is to realize auto loading, dwell and unloading, makes better accuracy and easier installation.
• 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.
• Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.
• One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.
• Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.
• Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.
• Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error, VicPad Vickers measurement device and iVicky 2.0 PC software system.
features
- • Hardness testing of metals and scientific researching;
- • Hardness range from soft materials to very hard materials;
- • Suitable for most of the metals (except very thin metal and metal with coated layers)
