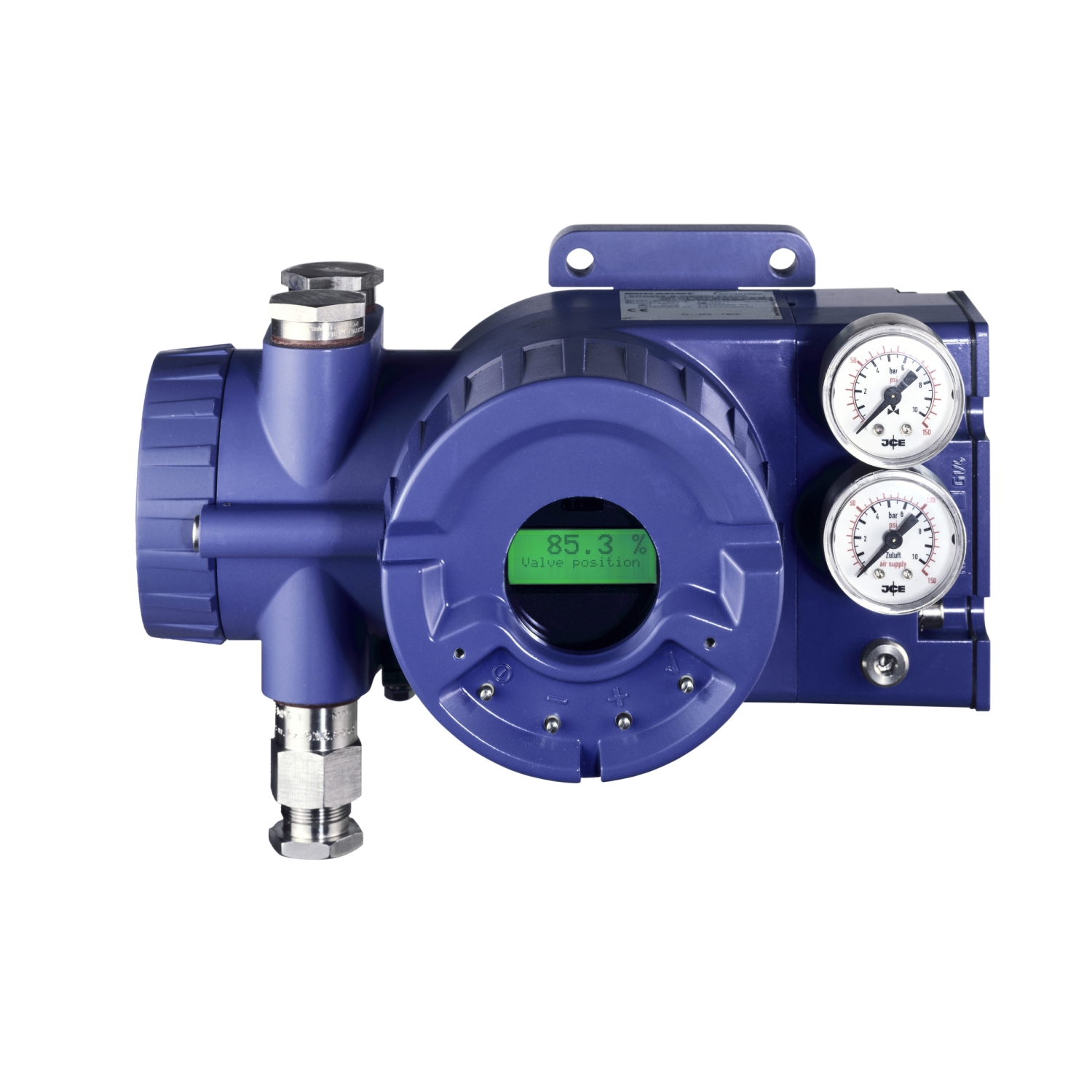

SRD960 Universal Positioner
The Universal Positioner SRD960 is designed to operate pneumatic valve actuators and is available in the version Ex d / explosionproof (flameproof) or Ex ia / intrinsic safety.
The Universal Positioner SRD960 is designed to operate pneumatic valve actuators and is available in the version Ex d / explosionproof (flameproof) or Ex ia / intrinsic safety. It can be operated from control systems (e.g. the Foxboro I/A Series System), controllers, or PC-based configuration- and operation tools such FDT/DTM. The positioner is available with different communication protocols. This includes versions with analog setpoint (4 to 20 mA) without communication or with superimposed HART signal; or fieldbus communication according to PROFIBUS-PA and FOUNDATION Fieldbus H1 based on IEC 1158-2 MBP acc. to FISCO. The multi-lingual full text graphic LCD in connection with the external 4 push buttons allows a comfortable and easy local configuration and operation as well as the display of valve specific data, and status- and diagnostic messages.
features
Intelligent
- • Auto-start with self-calibration
- • Self diagnostics, status- and diagnostic messagesEasy operation with four keys
- • Multi-Lingual full text graphical LCD
With communication
- • HART, FOUNDATION Fieldbus H1, PROFIBUS-PA
- • Configuration by means of local keys, handheld terminal (HART), PC with FDT-DTM or I/A Series system
- • Advanced Diagnostic / Premium Diagnostic: FDT based Software for valve diagnostics and predictive maintenance
FEATURES
- • Stroke 8 to 120 mm / 260 mm (0.3 to 14.7 in / 10.2 in)
- • Angle range up to 95°
- • Supply air pressure up to 6 bar (90 psig), with spool valve up to 7 bar (105 psig)
- • Single or double-acting
- • Mounting on linear actuators according to NAMUR – IEC 50534-6-1 – VDI/VDE 3847
- • Mounting on rotary actuators acc. to VDI/VDE 3845
- • Protection class IP 66, NEMA 4X
- • Approved for SIL applications
- • Explosion protection: Flameproof according to ATEX – Ex d; Explosion proof according to FM
