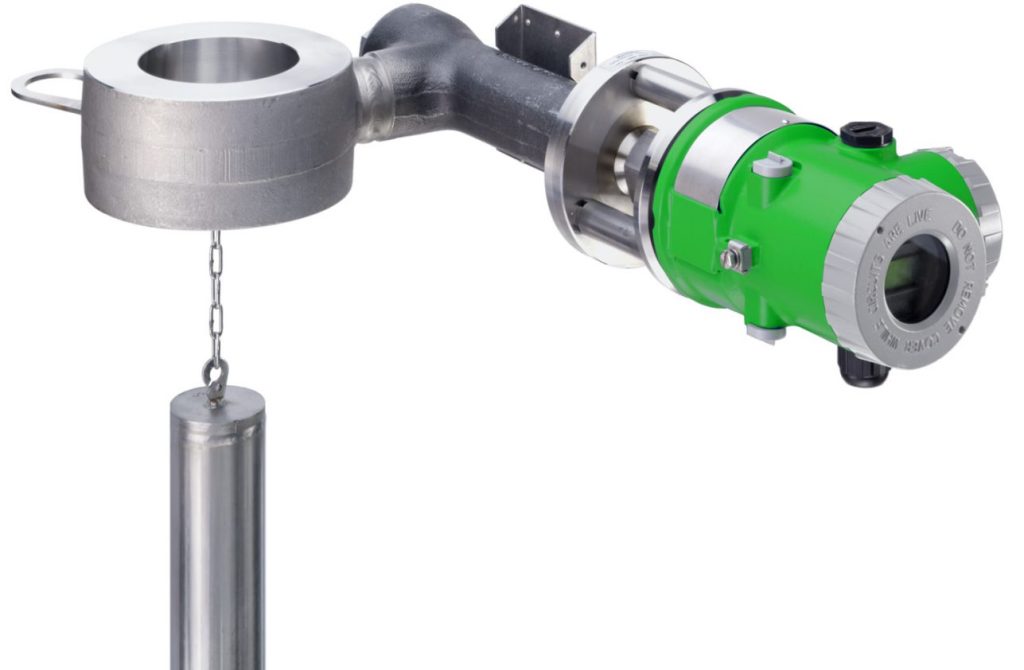

244LD LevelStar Intelligent Buoyancy Transmitter for Level, Interface and Density – HART® and FOUNDATION Fieldbus
The intelligent transmitter 244LD LevelStar is designed to perform continuous measurements for liquid level, or density of liquids in the process of all industrial applications.
The intelligent transmitter 244LD LevelStar is designed to perform continuous measurements for liquid level, or density of liquids in the process of all industrial applications. The measurement is based on the proven Archimedes buoyancy principle. Measuring values can be transferred analog and digital. Digital communication facilitates complete operation and configuration via PC or control system. Despite extreme temperatures, high process pressure and corrosive liquids, the 244LD measures with consistent reliability and high precision. It is approved for installations in contact with explosive atmospheres.
features
- • HART® Communication, 4 to 20 mA, or Foundation Fieldbus
- • Configuration via FDT-DTM
- • Multilingual full text graphic LCD
- • IR communication as a standard
- • Easy adaptation to the measuring point without calibration at the workshop
- • Linear or customized characteristic
- • 32 points linearization for volumetric measurement
- • Approved for SIL 2 applications (at HART®)
- • Back documentation of measuring point
- • Continuous self-diagnostics, Status and diagnostic messages
- • Configurable safety value
- • Local display in %, mA, or physical units
- • Process temperature from –196°C to +500°C
- • Materials for use with aggressive media
- • Micro sinter metal sensor technology
