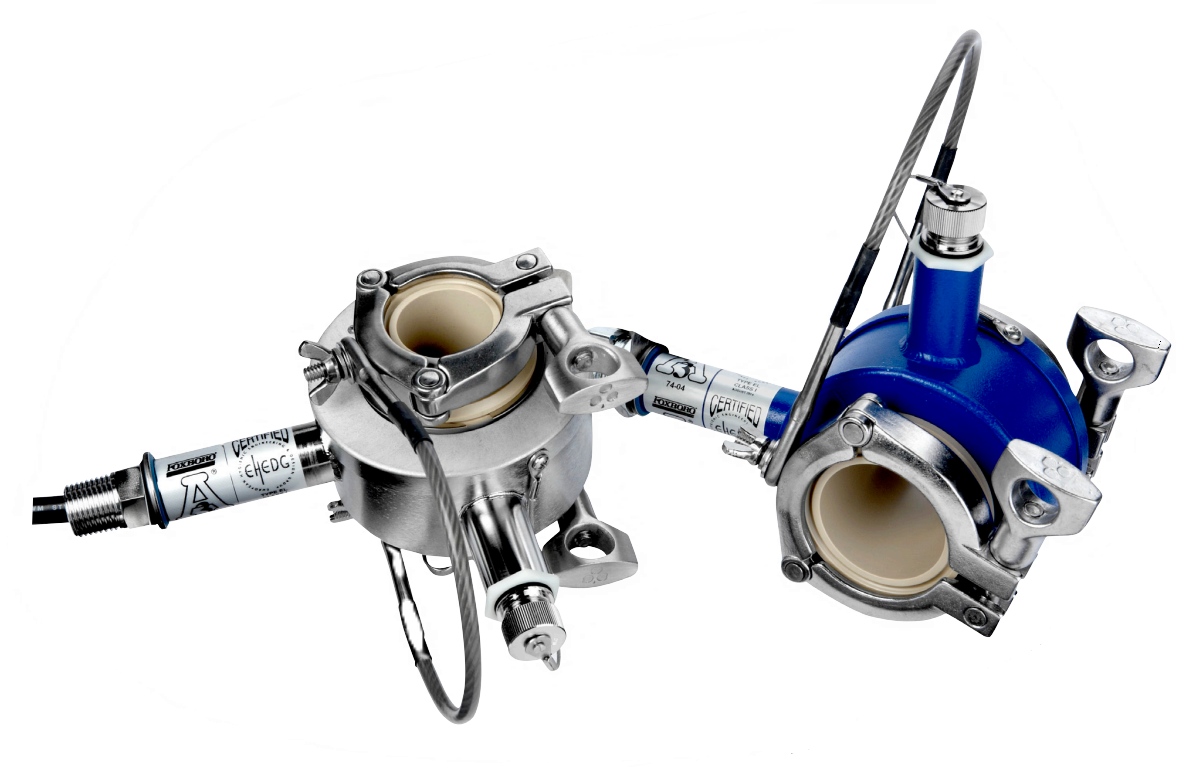

871FT Series Non-Invasive Sanitary and Industrial Flow-Through Conductivity Sensors
The 871FT Series Non-Invasive Sanitary and Industrial Flow-Through Sensors are a family of in-line sensors that measure the conductivity of virtually any conductive liquid. They are offered in many common line sizes from 0.5 to 4.0 inches. A selection of construction materials to accommodate a wide range of sanitary and industrial applications is also offered.
The Sanitary Non-invasive Advantage
• The Non-Invasive Sanitary 871FT Sensors provide a unique conductivity measurement for numerous Food and Pharmaceutical applications, including the monitoring and control of beverage products (such as juices, beer, milk, wine, soft drinks, and bottled water) and their associated CIP requirements.
The Industrial Non-invasive Advantage
• These Industrial Sensors provide a non-invasive conductivity measurement for innumerable aqueous and/or chemical concentration monitoring and control applications (such as condensate and boiler water, acid or caustic concentration control, waste stream monitoring, leak detection, and interface detection). The Industrial Sensors may often be calibrated in line, thus significantly reducing scheduled maintenance time, and helping eliminate the need for exposure of personnel to potentially hazardous chemicals. Simple design, and ANSI Class 150 or 300 flange mounting, facilitates both installation and removal of the sensor from the process line.
Externally Accessible Calibration Port
• In controlling and measuring solutions that are hazardous to personnel, or where explosive environments are common, traditional conductivity calibration is tedious, risky, and costly. With the 871FT Calibration Port, breaking into the line is unnecessary, calibration is accomplished in-situ, and the associated costs diminish appreciably.
features
- • Vaaler Award from Chemical Processing Magazine for industrial version; top honors from Food Processing for sanitary version.
- • Compatible with intelligent and analog transmitters and analyzers.
- • Non-invasive modular design permits ease of installation, and removal from process line without need to open line.
- • Unique patented sensor and toroid design.
- • No obstruction of process flow.
- • In-line calibration minimizes issues.
- • Sanitary sensors are offered with the traditional Tri-Clamp type, quick-disconnect end connections.
- • Numerous options and accessories offered.
