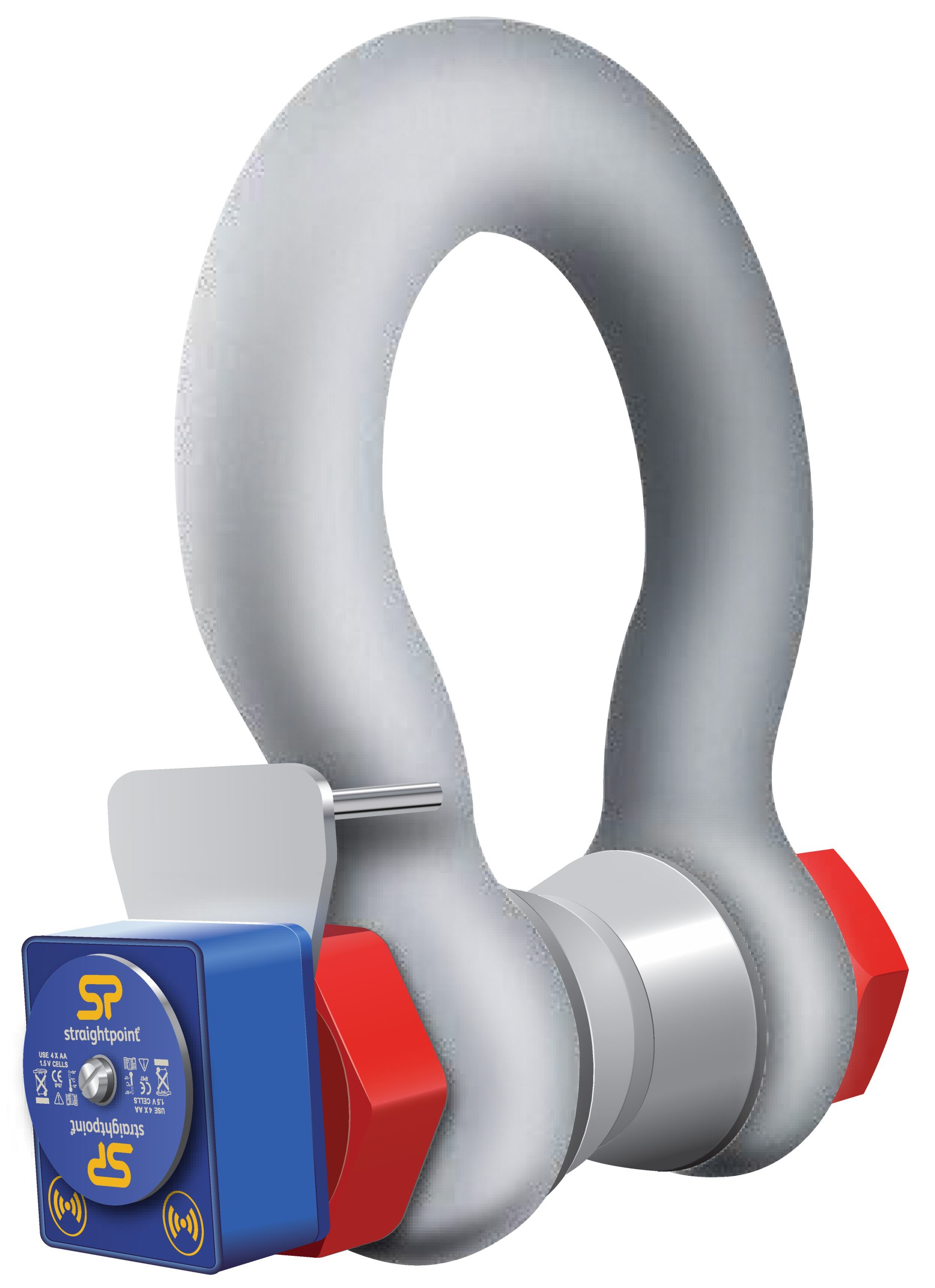

Straightpoint Wireless Load Shackle

Two versions of the WLS are available: 

• •   Long range 2.4 GHz version providing industry-leading wireless range of 1000m or 3280ft to SP’s SW-HHP handheld or software options.
• •   Bluetooth output and can be connected to any smartphone running our free HHP app on iOS or Android at ranges up to 100m/328ft.

Each WLS is proof tested, then equipped with a hard-anodised aluminium electronics enclosure. Contained within this aluminium enclosure is an internal chassis providing IP67 or NEMA6 environmental protection even with the battery cover plate missing.

Featuring industry-leading wireless technology the WLS is supplied with an update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz if required for dynamic load measurement projects.

Utilising easily sourced AA alkaline batteries the WLS features advanced circuitry designed to protect the unit from damage associated with incorrectly installed batteries. This advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement.

The WLS may also be used with Straightpoint’s SW-PTP software package allowing the operator to perform load tests at a safe distance and generate real-time test certificates on-site.

A full array of wireless accessories is also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII) outputs.
