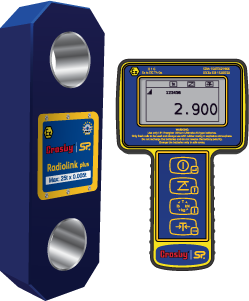

Straightpoint RadioLink Plus – Wireless Tension Load Cell

Three versions of the RLP are available:

•    Long range 2.4GHz version providing industry-leading wireless range of 1000m or 3280ft to SP’s SW-HHP handheld or software options.
•    Bluetooth output and can be connected to any smart phone running SP’s free HHP app on iOS or Android, at ranges up to 100m or 328ft.
•    ATEX/IECEx for hazardous areas, zones 0, 1 & 2. Providing a wireless range of up to 500m or 1640ft to SW-HHP-ATEX handheld.

Constructed from high-quality aerospace grade aluminium, the RLP features an advanced internal design structure. This design provides the product with an unrivalled strength to weight ratio. The use of a separate internal sealed enclosure administers the load cell’s electronic components with IP67 or NEMA6 environmental protection, even with the battery cover plate missing. All these features makes it an industry-leading dynamometer, suitable for use in the harshest of environments.

The versatile RLP is able to provide an update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz, making it ideal for dynamic force measurement.

Decades of development into this product include many stand out features such as SP’s unique strain gauging method that helps compensate for wire rope torque when the Radiolink is loaded. The Radiolink plus tension load cell can also be used in combination with Crosby | Straightpoint ‘INSIGHT’ high speed wireless data logging software allowing for simultaneous control, display and real time data logging of up to 126 Crosby | Straightpoint wireless load cells.

A full array of wireless accessories are also available including wireless score board, overload alarm and base station with analogue 4-20mA) or 2 relay or RS485 ASCII outputs.
