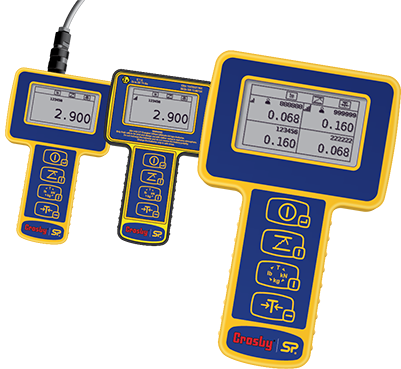

Straightpoint Handheld Plus
The Handheld plus is a rugged and versatile digital handheld display with a broad range of features and is suitable for all Straightpoint load cell products.
At the heart of the ergonomically designed Handheld plus is a powerful PCB providing industry-leading features such as user-selectable units of measure (tonnes, lbs, kg and kN), programmable audible overload alarm (HHP & SW-HHP), peak hold, pre-set tare and a user-resettable (HHP & SW-HHP) overload counter.
This crucial overload alarm counter is a requirement for many safety and quality control departments, as it keeps track of overload events, allowing the load cell in question to be removed from service immediately, following the calibration voiding overload event. The load cell in question can then be sent out for proper testing and, if necessary, recalibration before re-entering service.
In addition to the standard HHP, the SW-HHP is suitable for connection to any Straightpoint wireless load cell, has a range of up to 1000m/3280ft (ATEX 700m/2300ft) and is supplied as standard with the Radiolink plus load cell.
features
- • Overload counter
- • User settable 90db audible overload alarm (not ATEX)
- • Multiple display units – tonnes, lbs, kg and kN
- • 100Hz Peak hold
- • Pre-set tare
- • Unrivalled Wireless range 1000m/3280ft
- • Annual calibration reminder
